HTML to Markdown 用TS实现思路
- LW
- Typescript
- March 19, 2025
Table of Contents
根据 typescript 项目实战一书,整理的的实现一个markdown预览器的实现思路

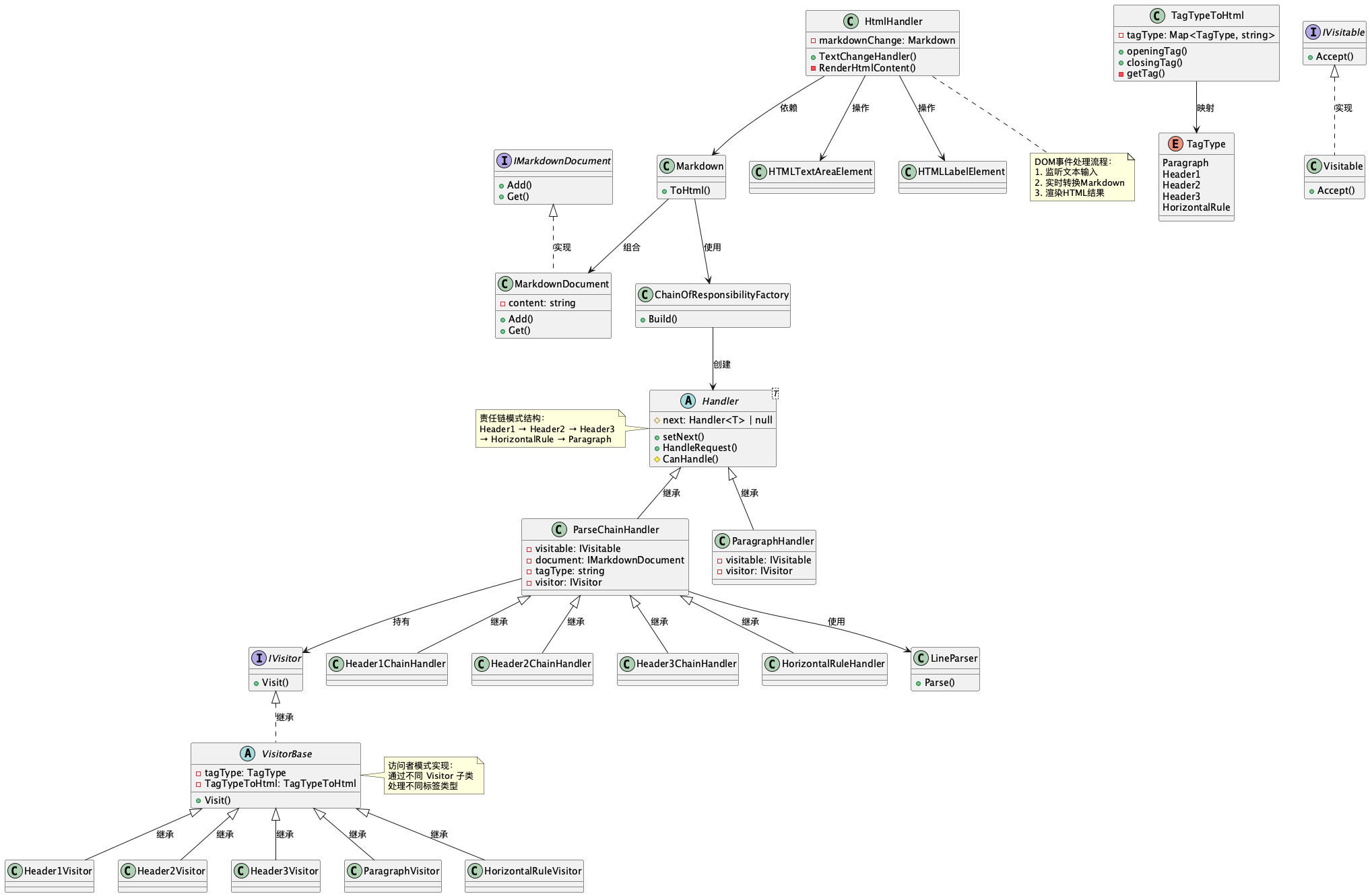

核心数据结构:
- TagType 枚举定义支持的标签类型
- TagTypeToHtml 类实现标签类型到HTML的映射
文档管理:
- IMarkdownDocument 接口定义文档操作契约
- MarkdownDocument 实现具体文档存储
访问者模式:
- 通过 IVisitor/IVisitable 接口实现双分派
- 基类 VisitorBase 封装公共逻辑
具体访问者处理不同标签类型 责任链模式:
- Handler 抽象类定义处理链基础
- 具体处理器实现 CanHandle 逻辑
- 链式结构:Header1 → Header2 → Header3 → HorizontalRule → Paragraph
工厂模式:
- ChainOfResponsibilityFactory 负责构建完整的处理链
前端集成:
- HtmlHandler 类桥接 DOM 操作与 Markdown 转换
实现实时预览功能 辅助工具:
- LineParser 处理行解析逻辑主要使用到
实现逻辑

代码实现
// markdown 标签 映射为HTML
enum TagType {
Paragraph,
Header1,
Header2,
Header3,
HorizontalRule,
}
// Tag映射类
// tag 映射为html html 是成对出现的
// 符合单一职责, 就是将tagType 映射到HTML标签
// 面向对象重要的原则(SOLID),可以自己领悟提高自己
class TagTypeToHtml {
// readonly 实例化类后,不能再该类的其他位置重新创建tagType
// 也就是 this.tagType = new Map<TagType,string>() 不会在被调用
private readonly tagType: Map<TagType, string> = new Map<TagType, string>();
constructor() {
// 初始化tagType
this.tagType.set(TagType.Header1, "h1");
this.tagType.set(TagType.Header2, "h2");
this.tagType.set(TagType.Header3, "h3");
this.tagType.set(TagType.Paragraph, "p");
this.tagType.set(TagType.HorizontalRule, "hr");
}
// 获取开标签和关闭标签(完后后可以删除)
public openingTag(tagType: TagType): string {
let tag = this.tagType.get(tagType);
if (tag !== null) {
return `<${tag}>`;
}
return `<p>`;
}
public closingTag(tagType: TagType): string {
let tag = this.tagType.get(tagType);
if (tag !== null) {
return `</${tag}>`;
}
return `</p>`;
}
// 聚合openTag 和 closingTag 功能,openingTagPattern 传 "</" || "<"
private getTag(tagType: TagType, openingTagPattern: string): string {
let tag = this.tagType.get(tagType);
if (tag !== null) {
return `${openingTagPattern}${tag}>`;
}
return `${openingTagPattern}p>`;
}
// 于是便有了新的开/闭tag方法
public OpeningTag(tagType: TagType): string {
return this.getTag(tagType, "<");
}
public ClosingTag(tagType: TagType): string {
return this.getTag(tagType, "</");
}
}
interface IMarkdownDocument {
// 使用字符串数组,只使用一个字符串,方便处理
Add(...content: string[]): void;
Get(): string;
}
// 实现
class MarkdownDocument implements IMarkdownDocument {
private content: string = "";
Add(...content: string[]): void {
content.forEach((element) => {
this.content += element;
});
}
Get(): string {
return this.content;
}
}
// 每次解析都将一行转换成ParseElement class
class ParseElement {
CurrentLine: string = "";
}
// 使用访问者模式 处理更新 markdown 文档
// 设计模式的一种 处理问题的一种解决方案
// 访问者模式 区分算法 和 算法操作对象
// 根据对 底层markdown对ParseElement类应用不同偶能的操作,创建不同的MarkdownDocument类
// 约定 实现 IVisitor 和 IVisitable
interface IVisitor {
Visit(token: ParseElement, markdownDocument: IMarkdownDocument): void;
}
interface IVisitable {
Accept(
visitor: IVisitor,
token: ParseElement,
markdownDocument: IMarkdownDocument
): void;
}
// 执行Visit时,使用TagTypeToHtml类,向MarkdownDocument添加对应的HTML开标签,一行文本 以及 HTML闭合标签
abstract class VisitorBase implements IVisitor {
protected constructor(
private readonly tagType: TagType,
private readonly TagTypeToHtml: TagTypeToHtml
) {
}
Visit(token: ParseElement, markdownDocument: IMarkdownDocument): void {
markdownDocument.Add(
this.TagTypeToHtml.OpeningTag(this.tagType),
token.CurrentLine,
this.TagTypeToHtml.ClosingTag(this.tagType)
)}
}
// 只有一种功能 如果判断是#开头,则将当前行内容添加到H1标签中,同时需要删除#
class Header1Visitor extends VisitorBase {
constructor() {
super(TagType.Header1, new TagTypeToHtml());
}
}
class Header2Visitor extends VisitorBase {
constructor() {
super(TagType.Header2, new TagTypeToHtml());
}
}
class Header3Visitor extends VisitorBase {
constructor() {
super(TagType.Header3, new TagTypeToHtml());
}
}
class ParagraphVisitor extends VisitorBase {
constructor() {
super(TagType.Paragraph, new TagTypeToHtml());
}
}
class HorizontalRuleVisitor extends VisitorBase {
constructor() {
super(TagType.HorizontalRule, new TagTypeToHtml());
}
}
class Visitable implements IVisitable {
Accept(
visitor: IVisitor,
token: ParseElement,
markdownDocument: IMarkdownDocument
): void {
visitor.Visit(token, markdownDocument);
}
}
// 使用责任链条模式 来实现决定使用什么HTML标签
abstract class Handler<T> {
// 使用protected 做访问修饰限制
// 使用联合类型 next可以为null
protected next: Handler<T> | null = null;
//setter 指定下一个类
public setNext(next: Handler<T>): void {
this.next = next;
}
public HandleRequest(request: T): void {
// 调用抽象方法
// 判断是否可 调用
if (!this.CanHandle(request)) {
if (this.next !== null) {
this.next.HandleRequest(request);
}
}
return;
}
protected abstract CanHandle(request: T): boolean;
}
class ParseChainHandler extends Handler<ParseElement> {
private readonly visitable: IVisitable = new Visitable();
constructor(
private readonly document: IMarkdownDocument,
private readonly tagType: string,
private readonly visitor: IVisitor
) {
super();
}
protected CanHandle(request: ParseElement): boolean {
let split = new LineParser().Parse(request.CurrentLine, this.tagType);
if (split[0]) {
request.CurrentLine = split[1];
this.visitable.Accept(this.visitor, request, this.document);
}
return split[0];
}
}
// 没有标签 默认文本是一个段落
class ParagraphHandler extends Handler<ParseElement> {
private readonly visitable: IVisitable = new Visitable();
private readonly visitor: IVisitor = new ParagraphVisitor();
protected CanHandle(request: ParseElement): boolean {
this.visitable.Accept(this.visitor, request, this.document);
return true;
}
constructor(private readonly document: IMarkdownDocument) {
super();
}
}
// markdown 标签具体处理
// 责任链 和 访问者 关联
class Header1ChainHandler extends ParseChainHandler {
constructor(document: IMarkdownDocument) {
super(document, "# ", new Header1Visitor());
}
}
class Header2ChainHandler extends ParseChainHandler {
constructor(document: IMarkdownDocument) {
super(document, "## ", new Header2Visitor());
}
}
class Header3ChainHandler extends ParseChainHandler {
constructor(document: IMarkdownDocument) {
super(document, "### ", new Header3Visitor());
}
}
class HorizontalRuleHander extends ParseChainHandler {
constructor(document: IMarkdownDocument) {
super(document, "--- ", new HorizontalRuleVisitor());
}
}
// 判断 和 切割 str
class LineParser {
public Parse(value: string, tag: string): [boolean, string] {
let output: [boolean, string] = [false, ""];
output[1] = value;
if (value === "") {
return output;
}
let split = value.startsWith(`${tag}`);
if (split) {
output[0] = true;
output[1] = value.substring(tag.length);
}
return output;
}
}
// 工厂模式串联 责任链
class ChainOfResponsibilityFactory {
Build(document: IMarkdownDocument): ParseChainHandler {
// 初始化责任链
let header1: Header1ChainHandler = new Header1ChainHandler(document);
let header2: Header2ChainHandler = new Header2ChainHandler(document);
let header3: Header3ChainHandler = new Header3ChainHandler(document);
let horizontalRule: HorizontalRuleHander = new HorizontalRuleHander(document);
let paragraph: ParagraphHandler = new ParagraphHandler(document);
// 责任连模式 h1 > h2 > h3 > hr > paragraph
header1.setNext(header2);
header2.setNext(header3);
header3.setNext(horizontalRule);
horizontalRule.setNext(paragraph);
return header1;
}
}
// 封装调用
class Markdown {
public ToHtml(text: string): string {
let document: IMarkdownDocument = new MarkdownDocument();
// 通过Build工厂方法 返回ParseChainHandler
let header1: Header1ChainHandler = new ChainOfResponsibilityFactory()
.Build(document);
// 按照回车 区分行
let lines: string[] = text.split(`\n`);
for (let index = 0; index < lines.length; index++) {
let parseElement: ParseElement = new ParseElement();
parseElement.CurrentLine = lines[index];
header1.HandleRequest(parseElement);
}
return document.Get();
}
}
// HTML处理类
class HtmlHandler {
private markdownChange: Markdown = new Markdown();
// 左右文本变化
public TextChangeHandler(id: string, output: string): void {
// 1 获取markdown 文本 dom节点
let markdown = <HTMLTextAreaElement>document.getElementById(id);
let markdownOutput = <HTMLLabelElement>document.getElementById(output);
// 判断dom节点
if (markdown !== null) {
markdown.onkeyup = () => {
// markdown 有值 填写到 右边
// if (markdown.value) {
// markdownOutput.innerHTML = markdown.value;
// } else {
// markdownOutput.innerHTML = "<p></p>";
this.RenderHtmlContent(markdown, markdownOutput);
};
window.onload = () => {
this.RenderHtmlContent(markdown, markdownOutput);
};
}
}
private RenderHtmlContent(
markdown: HTMLTextAreaElement,
markdownOutput: HTMLLabelElement
) {
if (markdown.value) {
markdownOutput.innerHTML = this.markdownChange.ToHtml(markdown.value);
} else {
markdownOutput.innerHTML = "<p></p>";
}
}
}
